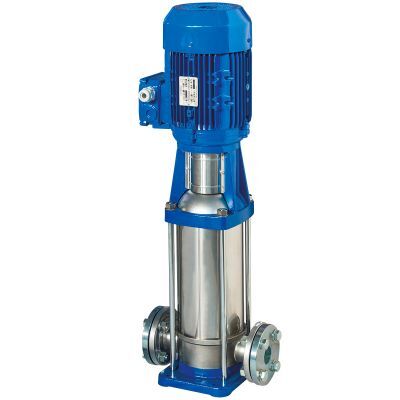

Speroni VS8-6 Vertical Multistage Flanged Pump in Stainless Steel AISI304, 400V

Speroni VS8-6 Vertical Multistage Flanged Pump in Stainless Steel AISI304, 400V

Speroni S/Steel Vertical Multistage Pumps are suitable for domestic or municipal water supply systems, capable of pumping clean non-explosive liquids without solid or abrasive substances, for agricultural irrigation and sports application, for civil and industrial use, boiler feeding and condensate systems and for high pressure washing plants.

OPERATING CONDITIONS

– Temperature of liquid from 0°C to 110°C(max)
– Ambient temperature max to 40°C

MOTOR
– Two-pole electric standard motor
(n = 2900 min-1) IE3
– Insulation Class F
– Protection IP 55
– Power supply: 400V/50HZ

MATERIALS
– Suction casing: Stainless Steel Aisi 304
– Delivery casing: Stainless Steel Aisi 304
– Impeller: Stainless Steel Aisi 304
– External jacket: Stainless Steel Aisi 304

– Upper cover: Stainless Steel Aisi 304
– Lower cover: Stainless Steel Aisi 304
– Pump shaft: Stainless Steel Aisi 303
– Mechanical seal: Silicon/Silicon/Viton

PERFORMANCE
Max Flow: 12 m3/h
Max Head: 62 M
Motor kW P2: 2.2KW
Suction Size: 1.1/2″

Made in Italy
