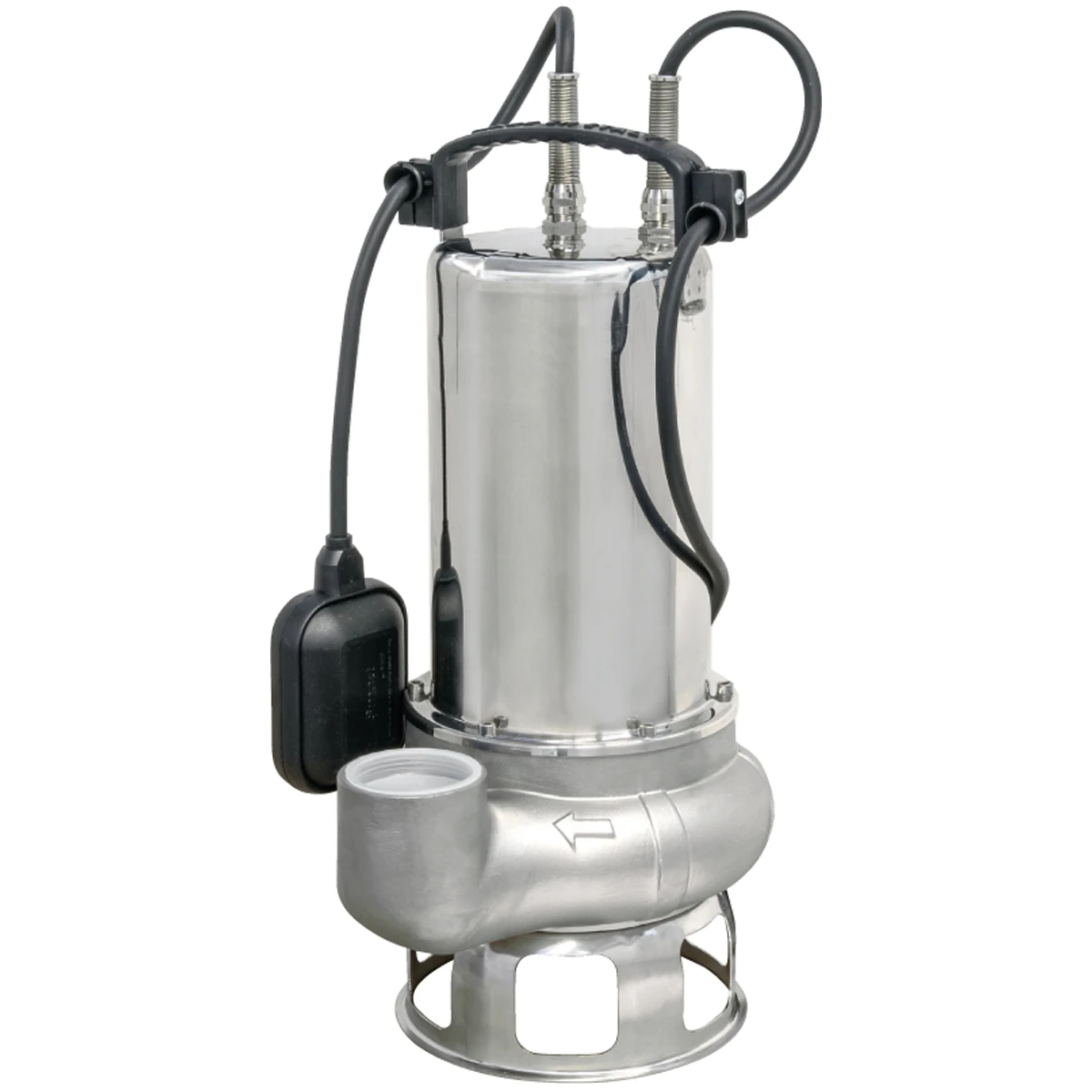

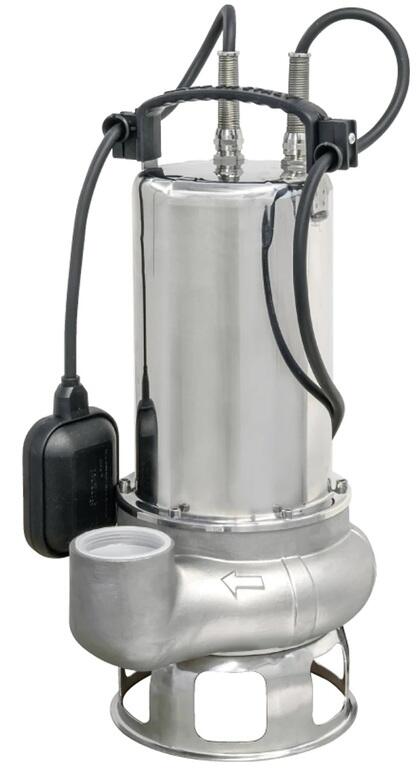

Speroni SNX-V Stainless Steel Submersible Pump w/Vortex impeller, 230V

Speroni SNX-V Stainless Steel Submersible Pump w/Vortex impeller, 230V

Submersible drainage stainless steel water pumps, with stainless steel plunged back impeller Vortex type. Able to drain decanting cesspools and to pump waste water for domestic and civil purposes. They can also be used for slightly acidic water.

Limits of use:
Temperature max. liquid: 35°C
– Maximum immersion depth 10 mt.
-Pump delivery port: Rp2’’
– Grain size inlet Ø 50 mm
– Min. suction level 70 mm
– Continuous duty

Engine:
– Single-phase 230V-50Hz (with floater)
– Dual chamber with oil bath motor for cooling and bearing lubrification – Permanent split capacitor – Insulation Class F
– Protection IP 68
– Motor Power: 1.1KW

Material:
– Handle: Stainless Steel AISI 304+Nylon
– Motor casing: Stainless Steel AISI 304
– Pump body: Stainless Steel AISI 304
– Impeller: Stainless Steel AISI 304
– Suction grid: Stainless Steel AISI 304
– Shaft with rotor: Stainless Steel AISI 304
– Mechanical seal in oil chamber: Silicon/Silicon/NBR

Performance
-Max. flow: 400 l/min
-Max. head: 10 m
Made in Italy
