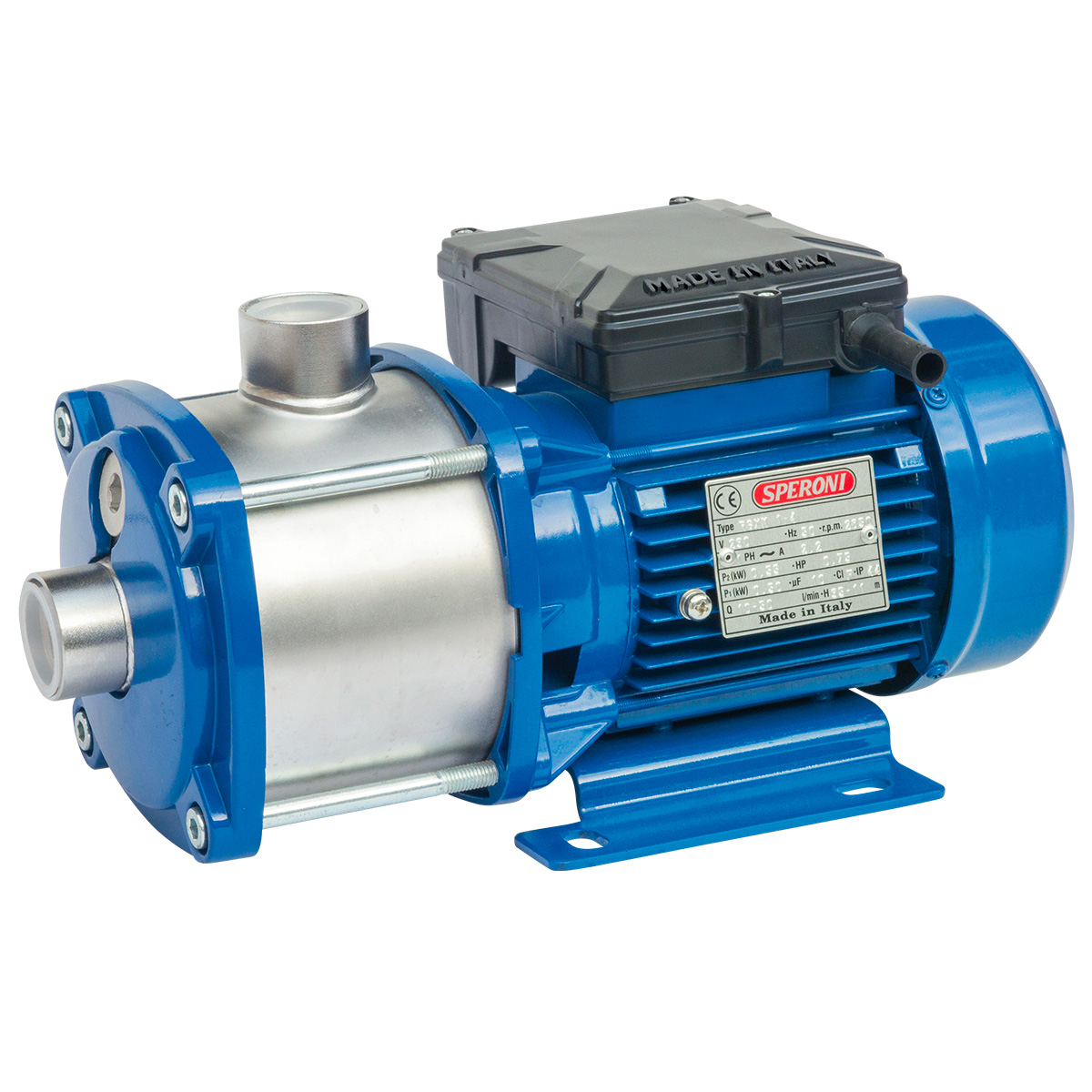

SPERONI RGXM 3-3 Horizontal Multistage Pump in Stainless Steel AISI304, 0.55KW, 230V

SPERONI RGXM 3-3 Horizontal Multistage Pump in Stainless Steel AISI304, 0.55KW, 230V

APPLICATION

Horizontal multi-impeller water pumps able to develop high pressure and a high water lift with a comparatively low power consumption.
Thanks to their silent running and very good features, they are suitable in domestic fittings by tank pressure groups, for small sprinkler irrigations and car washing.

OPERATING CONDITIONS

Liquid temperature up to 35°C (for home use   according to EN 60335-2-41)  Temperature max. liquid: 90°C (for other uses)- Ambient temperature up to 40°C- Total suction lift up to 7 mt.
Continuous duty MOTOR
Single-phase 230V-50Hz
Two-Pole induction motor (n = 2850 min-1)
Insulation Class F
Protection IP 55

MATERIALS
Pump body  Cast Iron
Pump cover  Cast Iron
Impeller  Stainless Steel AISI 304
Diffusers  Stainless Steel AISI 304
Pump casing  Stainless Steel AISI 304
Shaft with rotor  Stainless Steel AISI 304
Mechanical seal  Ceramic/Graphite/Viton

Motor input power: 0.55KW
Max. Head: 28 mtr
Max Flow: 4,8 m3/h
Weight: 7.7 kg

Made in Italy
