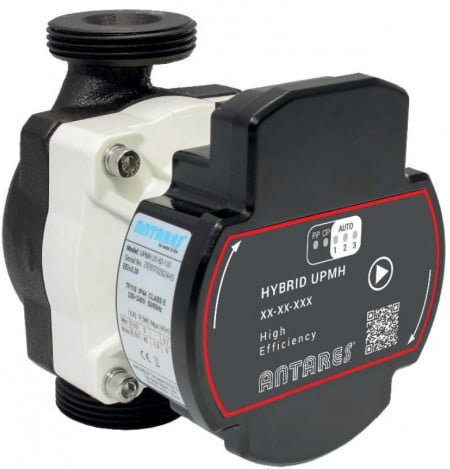

Antares Modulex UPMH 25-80-180 Hybrid circulation pump with PWM, 230V

Antares Modulex UPMH 25-80-180 Hybrid circulation pump with PWM, 230V

• Universal circulation pump for all applications. Can replace any equivalent pump.
• Intelligent frequency converter that allows operation in several modes: PP Proportional Pressure; CP Constant Pressure; CS Constant Speed;  Auto AdaptAutomatic Control
• Meets European Eup/Erp Directives with an energy efficiency index of 0.21.
• Equipped with PWM regulator for external control.

Flow rate =0-3.6 m ³ /h; Pumping height H=8-1 mH ₂ O
Ambient temperature range: 0 °C/+40 ^o C
Temperature category: TF 95
Agent temperature: 2°C..110°C
(To prevent condensation, the ambient temperature must always be lower than the agent temperature.)
Protection class: IP 44; Insulation class: E
Threaded connection R 1″; Connection G 1 1/2″; Installation length =180 mm
Dimensions L1xL2 =180×126 mm

Weight 2.7 kg
Connection: Threaded 1”
Guarantee: 2 years
