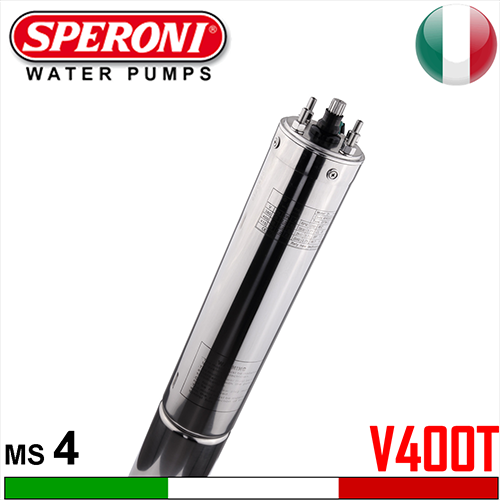

Speroni MST-4 Submersible Motor in Oil Bath  for 4’’ Wells, 2.2KW, 400V/3PH/5HZ

Speroni MST-4 Submersible Motor in Oil Bath  for 4’’ Wells, 2.2KW, 400V/3PH/5HZ

OPERATING CONDITIONS
– Liquid temperature up to 35°C (for home use according to EN 60335-2-41)-

Max. liquid temperature: 35°C (for other uses)
– Start/hour 30 max.

MOTOR
– Three-phase 400V-50Hz- Two-pole induction motor
– Submersible motor in oil bath- The filling fluid meets the regulations for food-grade oils and the purity requirements specified in the annex  to Official Gazette No.104 of April 20,1973.It also complies with FDA
– Class F Insulation – IP 68 Protection
– S1 Continuous duty
– Removable cable connector

MOTOR MATERIALS
– External casing: Stainless steel AISI 304
– Motor cover: Stainless steel AISI 304
– Motor shaft:  Stainless steel AISI 630
– Upper bracket: Cataphoresis-treated Cast Iron
– Mechanical seal Stainless steel AISI 304 Stainless steel AISI 304 Stainless steel AISI 630 Cataphoresis-treated Cast Iron Ceramic/Graphite

Motor type: MS4 – 3
Motor power: 2,2KW
Power Supply: 400V/3PH/50HZ
RPM: 2850
Cable: 1.5 mt
Weight: 19 kg

Made in Italy
