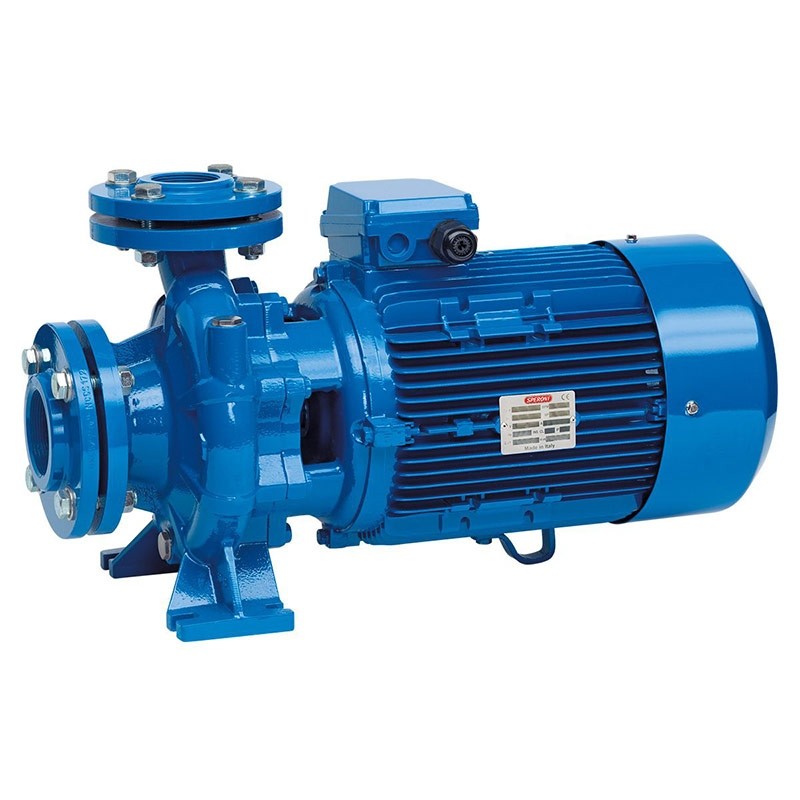

Speroni CS 50-160A 7,5KW 400V Flanged Monoblock Centrifugal Pump

Speroni CS 50-160A 7,5KW 400V Flanged M0noblock Centrifugal Pump

Speroni CS CSM Cast Iron Centrifugal Pumps have a single-impeller and pump body, each pump is connected to the motor by means of a support unit.

The pumps have flanged inlet and outlet ports in (PN10) and threaded counter-flanges.

These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. the pumps are ideally suited for pumping clean water and other chemically and mechanically non-aggressive liquids.

The pumps are suitable for civil, agricultural, industrial or general plant uses. Water supply, spray or flowing irrigation, autoclave feed, high pressure system, heating, conditioning and any other general service requiring transfer of clean liquids.

Pump Specifications

• working pressure 10 bar
• Liquid temperature up to 90°C
• Ambient temperature up to 40°C
• Total suction lift up to 7 mt
• Continuous duty
• Head: 40mtr
• Flow: 78m3/h

Motor Specifications

• Two-Pole induction motor(n = 2850 min-1)
• Insulation Class F
• Protection IP 55
• IE3
• Motor Power 7.5KW

Materials of Construction

• Pump body in Cast Iron, with flanged inlet and delivery openings (PN 10 )and threaded counter-flanges;
• Pump body-motor support in cast iron;
• Impeller in cast iron;
• Shaft in stainless steel;
• Mechanical seal in Ceramic/Graphite

Made in Italy
