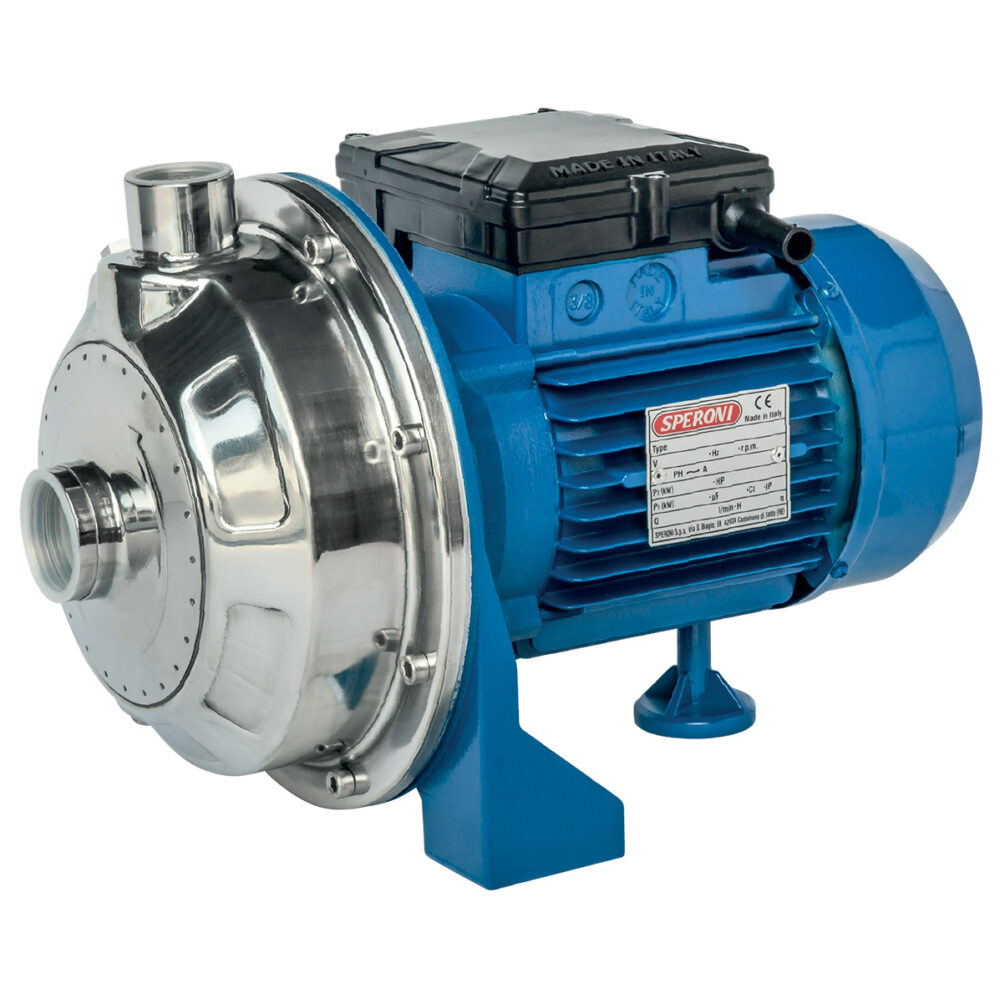

Speroni CTX 160/1.1 Pressed Stainless Steel Centrifugal pump 1.1KW, 400V/3PH/50HZ

Speroni CTX 160/1.1 Pressed Stainless Steel Centrifugal pump 1.1KW, 400V/3PH/50HZ

APPLICATION Single impeller centrifugal pump suitable to cover any small, medium or large capacity request; for domestic, agricultural and industrial purposes; with automatic water distribution through small and medium sized tanks; for sprinkler and flood irrigation systems in gardening and agriculture; to increase in derivation system pressure in aqueducts.

OPERATING CONDITIONS
– Liquid temperature up to 35°C (for home use
according to EN 60335-2-41)
Temperature max. liquid: 90°C (for other uses)
– Ambient temperature up to 40°C
– Total suction lift up to 7 mt.
– Continuous duty

MOTOR
– Two-Pole induction motor (n = 2850 min-1)
– 3phase Motor 400V/50HZ
– Insulation Class F
– IE3 Rated
– Protection IP 44 (CMX60)
– Protection IP 55

MATERIALS
– Pump body Stainless Steel AISI 304
– Motor Support Aluminium
– Impeller Stainless Steel AISI 304
– Shaft with rotor Stainless Steel AISI 304
– Mechanical seal Silicon/Graphite/EPDM

Flow Max: 440 L/min
Head Max:  20.5 mts
Suction: 1 1/2″ bsp
Delivery: 1 1/4″ bsp

Made in Italy
