ANTARES “AlfaMega” 65-12 Wet rotor, High Efficiency Circulating Pump, flanged DN 65, 230V

ANTARES “AlfaMega” 65-12 Wet rotor, High Efficiency Circulating Pump, flanged DN 65, 230V

High flow rate, high efficiency PWM circulator
Single-phase, 230 Vac with frequency modulation.
Power W: 1350.
Max. flow rate: 44 m3/h
Head 12 mt.
Cast-iron body.

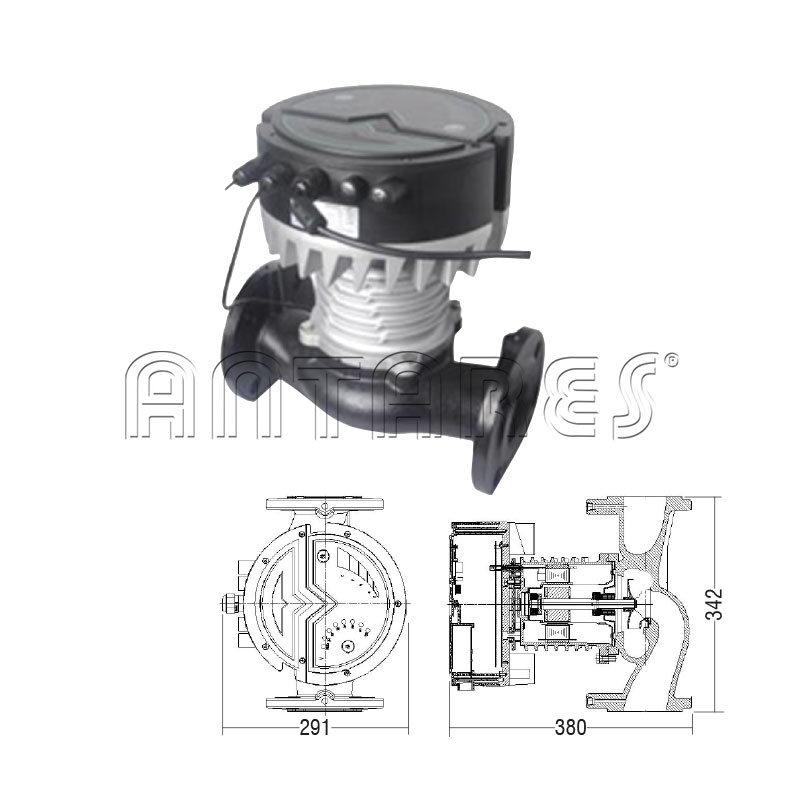

Center-to-center distance: 340 mm.
Flanged: DN65

With proportional pressure control, constant pressure control
Compliant to European ERP directives with energy efficiency index < 0,23 ▸ Frequency modulation, with PWM1 or PWM2 controller that can be set for external regulation.

TECHNICAL DATA: ▸ Max temp. pumped liquid:  -20° – 110° C
▸ With electrical stator filled with epoxy resin  to avoid condensation and to improve motor’s  cooling.

GENERAL DATA:
▸ Voltage 230 Vac
▸ Max. Pressure: 10 bar ▸ Protection level: IP 44
▸ With selectable PWM1 or PWM2 controller for external regulation

Warranty: 3years against manufacturer’s defects
