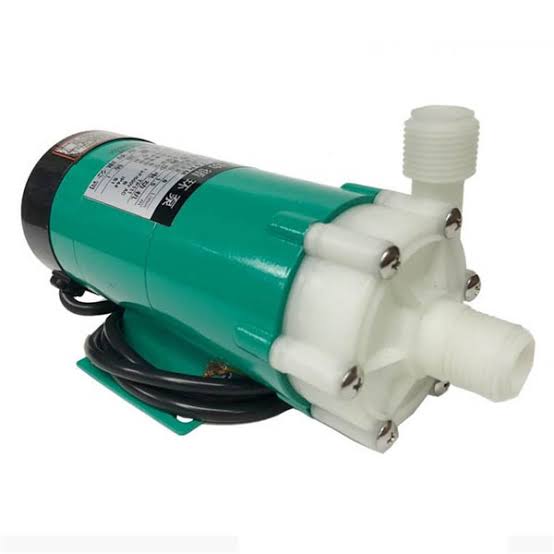

StarFlo MP-30RXM Magnetic Drive Circulation Pump, 230V

StarFlo MP-30RXM Magnetic Drive Circulation Pump, 230V

• • Design without axle sleeve, liquid passing through is sealed well without leakage;
  • Extraordinary high lift and large flow;
  • Anti-corrosion design, extensively used for industrial and aquariums- Ideal for salt water;
  • Heavy duty, durable and reliable;
  • In-line use only;
  • Thermal Overload Protection for the motor;
  • True Magnetic-drive pumps are completely sealed and do not have shaft seals to wear out.
  • Only a single casing O-ring is used and prevents the liquid from leaking.
  • It is manufactured using the latest engineering plastics to prevent corrosion.
  • The permanently split capacitor start (PSC) motors are totally enclosed fan cooled ( TEFC).
  • Continuously rated and Class E insulation,
  • Thermal overload protection and suitable for indoor use
  • CE approved and certified

• Motor Power: 25W
• Maximum Flow Rate: 62 to 72 Liters per minute (L/min)
• Maximum Head: 3.1 mtr
• Connection Interface: 26mm thread or hose connection

Magnetic drive circulate pump is a full-sealed pump,for motor connecting shaft and impeller are separately equipped with magnetic materials,they attract each other and coupled.It’s unnecessary to fit with traditional shaft seal.The rotation torsion of motor drives impeller to rotate through the attraction between driving magnet and driven magnet.The shortcoming of present customary magnetic drive pump is that rotation is absolutely prohibited under the condition of lacking liquid,otherwise,the machine will be destroyed,resulted in unnecessary troubles for customer.HOP adopts special ceramics as shaft bearing,characterizing strong resistance for abrasion and corrosion.

Magnetic drive circulate pump is generally designed for no shaft seal,completely avoids defects of pollution after corrosion caused by liquid leakage,which exists in traditional mechanical shaft seal pump.It is the optimum liquid transport pump on the industrial equipment.
